Explore Salus' leading high-resolution spatial transcriptomics solutions(STS) . SalusSTS is a powerful genomics research tool that contains ultra-high density chips, a gene sequencer, a tissue biochemistry workstation and a data analysis toolkit.

By leveraging Salus proprietary high-throughput sequencing and super-resolution fluorescence imaging technologies, SalusSTS enables more effective research at a subcellular resolution analysis on tissue cell functions, intercellular microenvironment interactions, and disease pathology, etc.

Home - Products - Spatial Transcriptomics - Spatial Transcription

Explore SalusSTS

ST Chip and Reagent Kits

Click the product to learn more

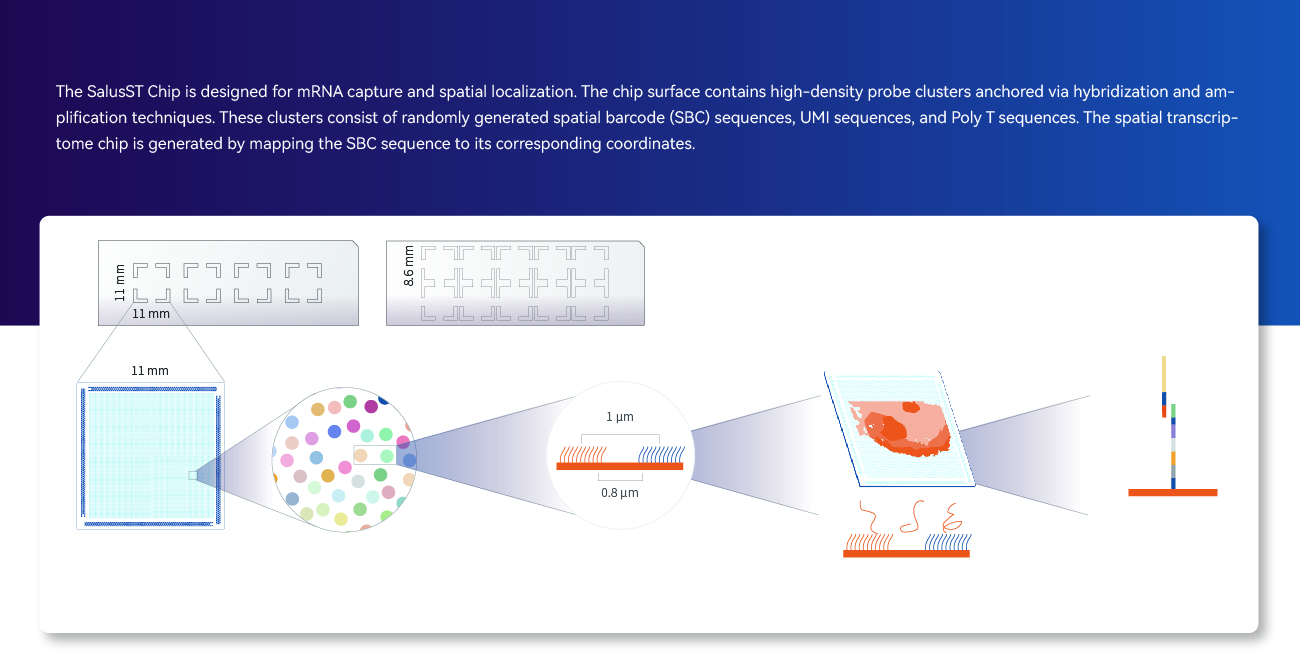

Salus STS Technologies

Specifications

Parameters	SalusSTS Chips
Size	8.6 mm × 8.6 mm × 10；11 mm × 11 mm × 4
Diameter of the spot	0.8 μm
Center to center (resolution)	~ 1.4 μm
Number of spots / 100 X 100 μm²	5000
Number of probes / μm²	18000 ± 3000
Bin analysis	5 μm~100 μm
Capture Method	Non-targeted and targeted capture
Species	Human, animals and plants
Sample type	Fresh frozen tissue (FF)

Key Features

A resolution of up to 1 μm, supporting precise spatial localization at the subcellular level.

Captures 1-10 samples either individually or in batches. The tissue and chip are firmly bonded through covalent bonds, ensuring high probe stability and minimal batch-to-batch variation.

Ultra-high-density probes (180,000 ± 3,000/μm²), offering superior capture efficiency.

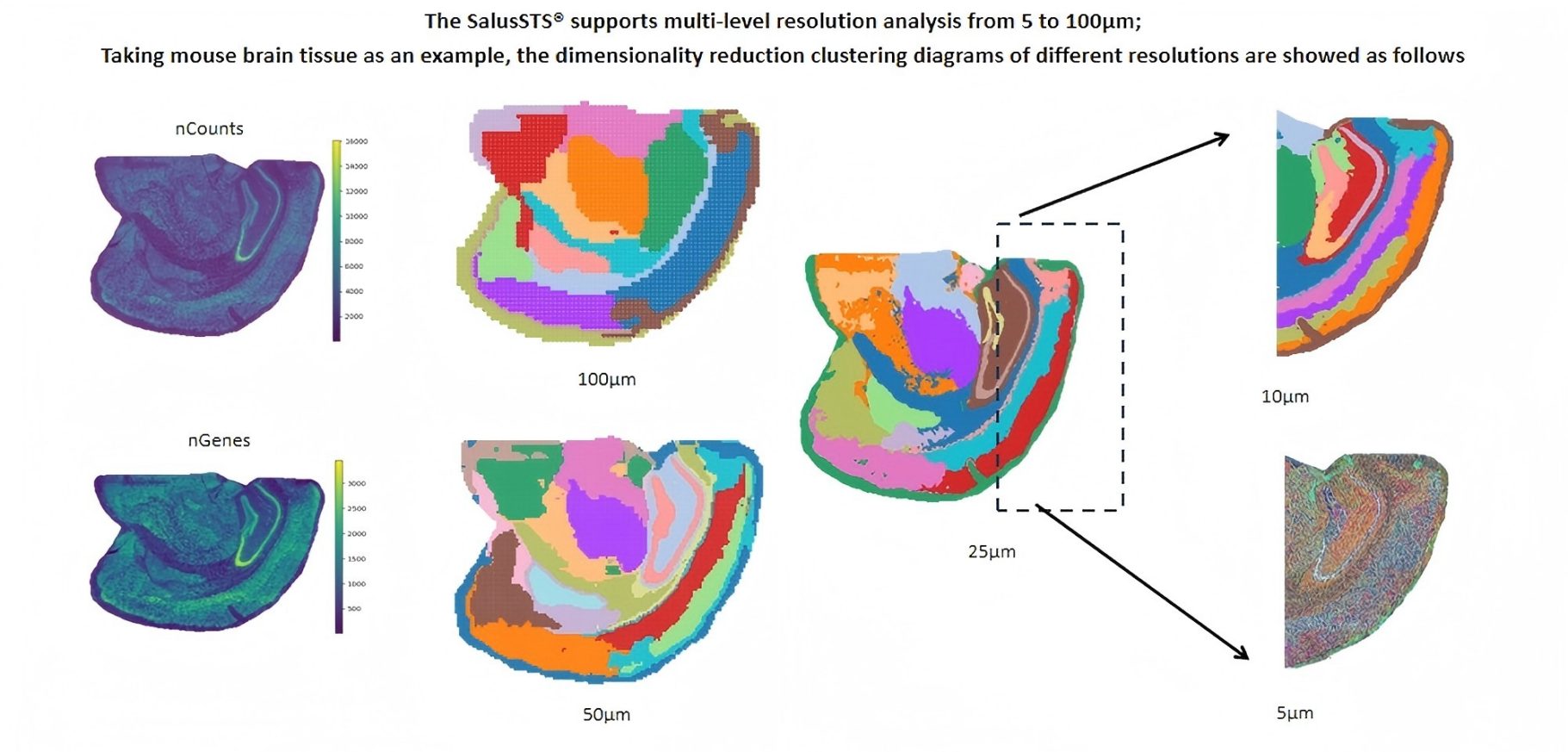

Supports multi-level resolution analysis (ranging from 5 μm to 100 μm).

Captures a wide range of transcript data from the tissue section, facilitating the detection of novel and low-abundance transcripts.

Automated workflow using the Salus Tissue Biochemistry Workstation, ensuring standardized operations, reducing human error, and improving efficiency.

Supports chip sizes of 8.6 × 8.6 mm² and 11 × 11 mm², with customizable capture areas for larger tissues.

Supports both targeted and non-targeted capture, and is applicable to various species and tissue types.

Salus STS Workflow
Data Demostrations
Applications
Ordering Information

Products	Product Code	Specifications
SalusSTS tissue optimization reagents Kit Set	SL-S00176	10 rxns
SalusSTS gene expression kit (8.6 mm)	SL-S00179	10 rxns
SalusSTS gene expression kit (11 mm)	SL-S00183	4 rxns
Salus Cryostat	SL-R00102	/
SalusSTS Analysis tool kits	SL-R00103	/
Salus Biochemistry Workstation	SL-R00104	/
Salus Pro Genetic Sequencer	SL-Y00102	/
Salus Pro Sequencing Reagent Kits (PRM-PE 100-500 M)	SL-S00149	/

*For more information please contact us;

*SalusSTS gene expression kit includes an expression chip, a chip cassette, and gene expression reagent kits;

*SalusSTS is for research use only;

*rxns represents reaction times;

Request a demo
